'Huahui Brand' The preparation of metallurgical pellets of iron fine powder briquette adhesive/binder is an important part of the metallurgical process. It can not only improve the metallurgical physical and chemical properties of the material, but also realize the industrial solid waste resources An important way to optimize utilization and circular economy. Cold-set molding technology can not only improve its combustion or reaction performance, but also reduce the formation and emission of pollutants through the addition of removal agents. Therefore, cold-pressed pellet technology is an important way to achieve energy conservation and utilize waste resources. For this reason, our company proposes a series of cold-setting pellet binders.
The pellet binder is compounded by the polymerization reaction of polymer materials and various chemical raw materials, and has properties such as hydrophilicity, complexing, rapid setting, and redox properties. It is not only suitable for the molding and granulation of various ore powder raw materials in the metallurgical industry, but also suitable for the molding and granulation of iron-containing dust and mud waste. It can solve the problem of strict grade requirements for iron ore powder raw materials in existing sintering plants, serious decline in grade of sintered pellets, and consumption. Can solve advanced problems. Compared with the traditional use of bentonite, it has the characteristics of strong bonding force, pellet strength as high as 1000N/ball, improved pellet ore grade, and reduced energy consumption. It is widely used to handle various materials, including iron ore powder, manganese ore powder, manganese ore powder, phosphate ore powder, copper, lead, zinc and other ore powders, refractory materials, coke powder, coal powder and various dusts. The prepared cold-pressed pellets are also widely used as charge for blast furnaces, direct reduction furnaces, iron furnaces, gas generating furnaces, submerged arc furnaces, etc.
1. Iron fine powder 1000kg, dry powder binder: 10-15kg; (the amount can be adjusted according to the moisture content of the raw materials).
2. First transport the raw materials to the mixer with a conveyor belt, install a water tank on the mixer, adjust the amount of water added according to the humidity of the raw materials, mix the above raw materials evenly and then enter the briquetting machine.
3. Use a conveyor belt to transport the formed pellets to the dryer, and dry them at 150°C for 1-1.5 hours, or they can be dried naturally.

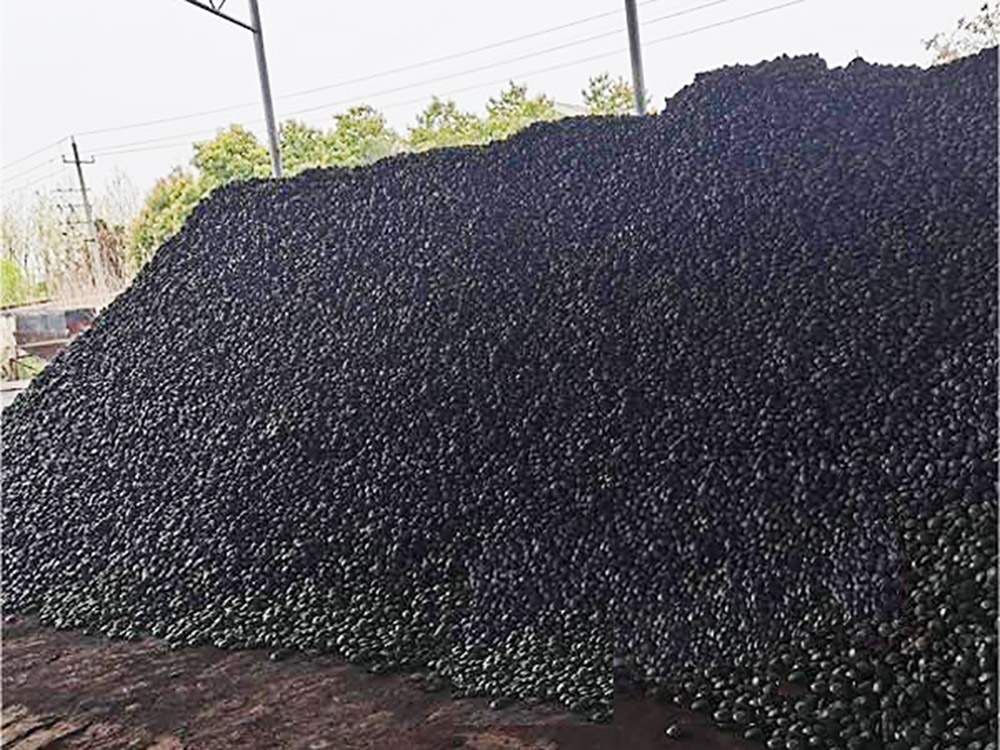

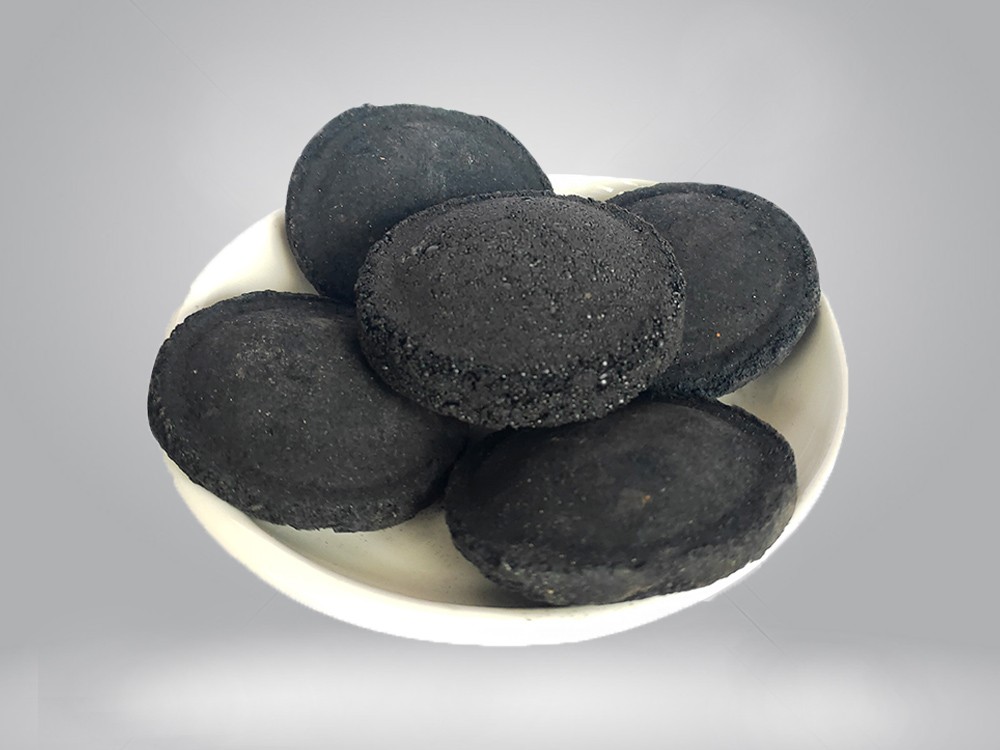

1. Cold-pressed pellets are made of ore powder, coke powder, solvent, etc., which can be directly put into the furnace for smelting. They can be used as ingredients for larger blast furnaces. The coke powder in the cold pellets can replace part of the expensive coke, thereby reducing the cost. Production cost, in addition, replacing part of the existing furnace charge with cold balls can increase the output of the blast furnace and reduce the coke ratio. It solves the pollution problem caused by sintering and is an ideal project for technical renovation of small and medium-sized blast furnaces.
2. The rolling scale, dust and sludge produced during steel rolling and steelmaking are made into cold-pressed pellets, which can be directly added to converters and electric furnaces as slagging dephosphorization agents and coolants for steelmaking. This process not only recovers part of the metal It also solves the problem of insufficient scrap steel in steel plants, improves the quality of steel, and reduces the cost per ton of steel.
3. Cold-pressed pellets made of iron-containing materials, coke powder, flux, etc. have self-reducing properties. The pellets can be directly added to the iron-melting furnace for smelting. Replacing part of the pig iron with self-reducing pellets will not affect the performance of the iron-melting furnace. The operation is adversely affected, production costs are greatly reduced, casting quality is improved, and product competitiveness is enhanced.

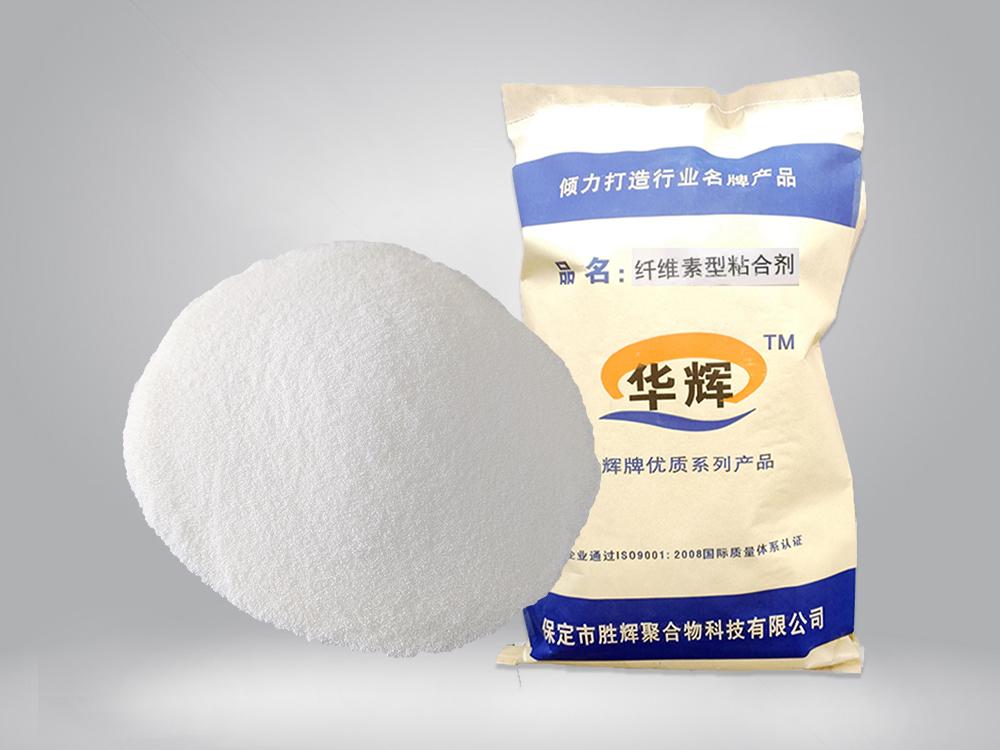

This product is packed in woven bags, 25kg per bag. Care should be taken to prevent moisture, rain, and agglomeration. If there are agglomerations, the use effect will not be affected after crushing. They are non-flammable and explosive dangerous goods.
